Accessories

Contents
Eiffel Basic

Eiffel Basic

Accessory Overview

Wallbox presents Eiffel Basic, its most competitive EV charging pedestal for single or dual mounting.

Eiffel Basic enables parking spaces to install free-standing charging stations. Combined with its rain cover, this pedestal achieves durable and efficient installations in both outdoor and indoor spaces.

The pedestal is set up as a support accessory for the installation of:

  • Pulsar/Pulsar Plus/Pulsar Max/Pulsar Pro*

  • Copper SB

  • Commander 2/2s

*Eiffel Basic is currently not compatible with Socket versions of Pulsar. Please reach out to your sales representative regarding the availability date.

Eiffel pedestal

Accessory Overview

Wallbox’s new EV charging pedestal for single or dual mounting.

Eiffel is an elegant solution for free-standing charging stations in any parking space. The pedestal allows for a unique and flexible mounting solution, making installation of your chargers the most convenient.

The pedestal is set up as a support accessory for the installation of:

  • Pulsar/Pulsar Plus/Pulsar Max/Pulsar Pro*

  • Copper SB

  • Commander 2/2s

*Eiffel Basic is currently not compatible with Socket versions of Pulsar. Please contact your sales representative regarding the availability date.

Eiffel Plus Render

Eiffel Plus

Accessory Overview

Eiffel Plus is a solution for Copper SB that allows a Plug&Play electrical installation. It includes electrical protections (MCB + RCD) per charger, ethernet switch, MID meters, and main electrical connection.
Its design makes it perfect, especially in semi-public and private areas such as companies, shopping centers, hotels, condos, etc.
We also offer an optional 3G/4G router to provide an internet connection.

English
  1. Go to Digital Installation Guide

Onyx pedestal

Accessory Overview

The Onyx allows a mono or dual installation of your Wallbox.

The Onyx pedestal combines the materials technology and art. The combined use of steel and high performance glass makes possible the most advanced recharging solution of the moment. With its different combinations, the pedestal allows unique and flexible solutions at the best convenience of the installation.

The pedestal is set up as a support accessory for the installation of:

  • Wallbox Copper SB
  • Wallbox Commander 2

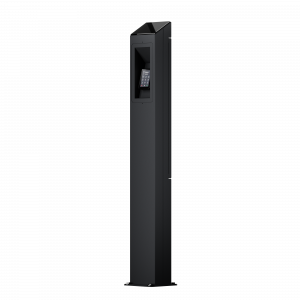

ABL Payment Terminal

Accessory Overview

The ABL payment terminal is ideal for charging in hotels, restaurants or public car parks.

The payment terminal from Payter is integrated into a pedestal and enables contactless payment for charging processes. An integrated SIM card ensures smooth communication between the charging station and the payment terminal via the backend.

POWER METERS

Overview

The Wallbox Power meters enable access to Energy Management Solutions from Wallbox, a suite of savings and sustainability software that enhance the EV charging experience, like Solar Charging or Power Boost.
N1 CT

N1 CT 80A

  • Measure: Indirect (Clamp)
  • Single-phase
  • Up to 80A
  • Din rail spaces: 1
n1ct100

N1 CT 100A

  • Measure: Indirect (Clamp)
  • Single-phase
  • Up to 100A
  • Din rail spaces: 1

Temco clamp

  • Measure: Indirect (Clamp)
  • Single-phase
  • Up to 100A
  • Din rail spaces: 0

Not compatible with Solar Charging

EM112

  • Measure: Direct
  • Single-phase
  • Up to 100A
  • Din rail spaces: 2

EM330 – 250A

  • Measure: Indirect ( 3 Clamps included)
  • Three-phase
  • Up to 250A
  • Din rail spaces: 3

EM330 – 400A

  • Measure: Indirect ( 3 Clamps included)
  • Three-phase
  • Up to 400A
  • Din rail spaces: 3

EM330 – 600A

  • Measure: Indirect ( 3 Clamps included)
  • Three-phase
  • Up to 600A
  • Din rail spaces: 3

EM340

  • Measure: Direct
  • Three-phase
  • Up to 65A
  • Din rail spaces: 3
P1-Port

P1 Port

Accessory Overview

  • P1 protocol conform DSMR4/DSMR5 (NL) and eMUCS
  • 2.1 meter cable included

Documentation

Download the EMS Installation Guide below for instructions to install Power Boost, Solar Charging, Static Load Management, Dynamic Static Load Management, and V2H Energy Management Solutions (EMS).

MID

Accessories Overview

MID approved electricity meters are certified to measure the amount of power used to charge. This allows you to charge for your services more accurately based on the actual energy spent on each charging session.
EM112 MID

EM112 MID

  • Measure: Direct
  • Single-phase
  • Up to 100A
  • Din rail spaces: 2
EM340 MID

EM340 MID

  • Measure: Direct
  • Three-phase
  • Up to 65A
  • Din rail spaces: 3
view more

Mobile Connectivity

Accessory Overview

Allows your Wallbox to communicate with its MyWalbox charging management platform using 3G or 4G networks. For updated and synchronized data in real-time.

view more

Fusebox pro & Fusebox lite

Accessory Overview

For those installations where the EV electric protections need to be located close to the charger, Wallbox presents Fuse Box LITE and PRO putting together design, quality and safety.

  • Fuse Box Lite : single phase, MCB + RCD protections
  • Fuse Box Pro : single phase, MCB + RCD + automatic reconnection protections

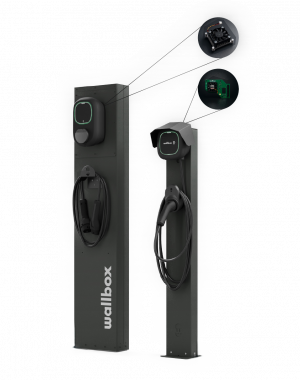

Thermal Accessories Support Web

Thermal Efficiency kit

Accessory Overview

Why we built it

While installing your charger under direct sunlight isn’t recommended, we know it’s sometimes unavoidable.

A smart combination of hardware and software upgrades, this solution improves charging power while safeguarding internal components, maintaining safety and extending product lifespan – even at high temperatures.

Components

  • Sun cover: Our custom shading rooftop protects the charger from direct sun exposure to minimize radiation effects.
  • Software upgrade: Our tailored derating algorithm protects sensitive components, operating at the highest possible power, while ensuring safe and reliable operation.
  • Active cooling: Dissipates heat and maintains internal temperature within
    operating range. Two systems are available: Fan Board or Fan Heatsink. Check compatibilities section below.

When to use it

We always recommend installing your charger in a well-ventilated area, away from direct sunlight. But when that’s not possible – especially for users who need to charge as fast as possible during peak sun hours – the Thermal Efficiency Kit helps ensure:

  • Improved charging performance
  • Reliable operation in high temperatures
  • Protect internal components

For installers

Compatible with:

  • Pulsar Max and Pulsar Pro
  • Eiffel, Eiffel Basic and Wall mount

Note: To ensure optimal performance, chargers must be updated to software version 6.6 or higher.

Compatibility per charger family

ChargerItem CodeSun CoverFan BoardFan Heatsink
Pulsar PlusPLP1✔️
Plus SocketPSP1*
Pulsar MaxPLP2✔️✔️
PLP4✔️ * ✔️
Pulsar ProPPR1✔️✔️
PPR2✔️ * ✔️

*Not available for socket versions.

Installation guides

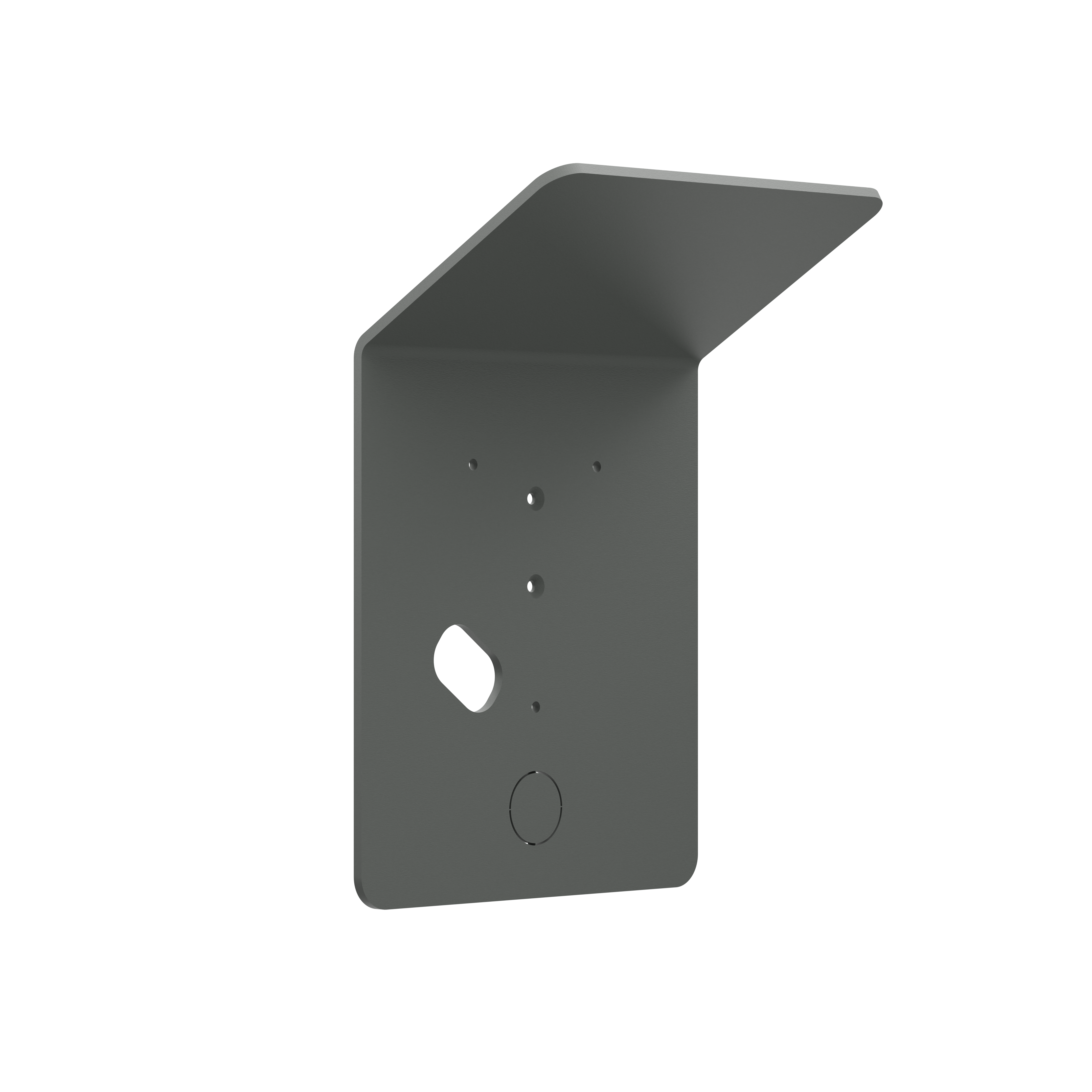

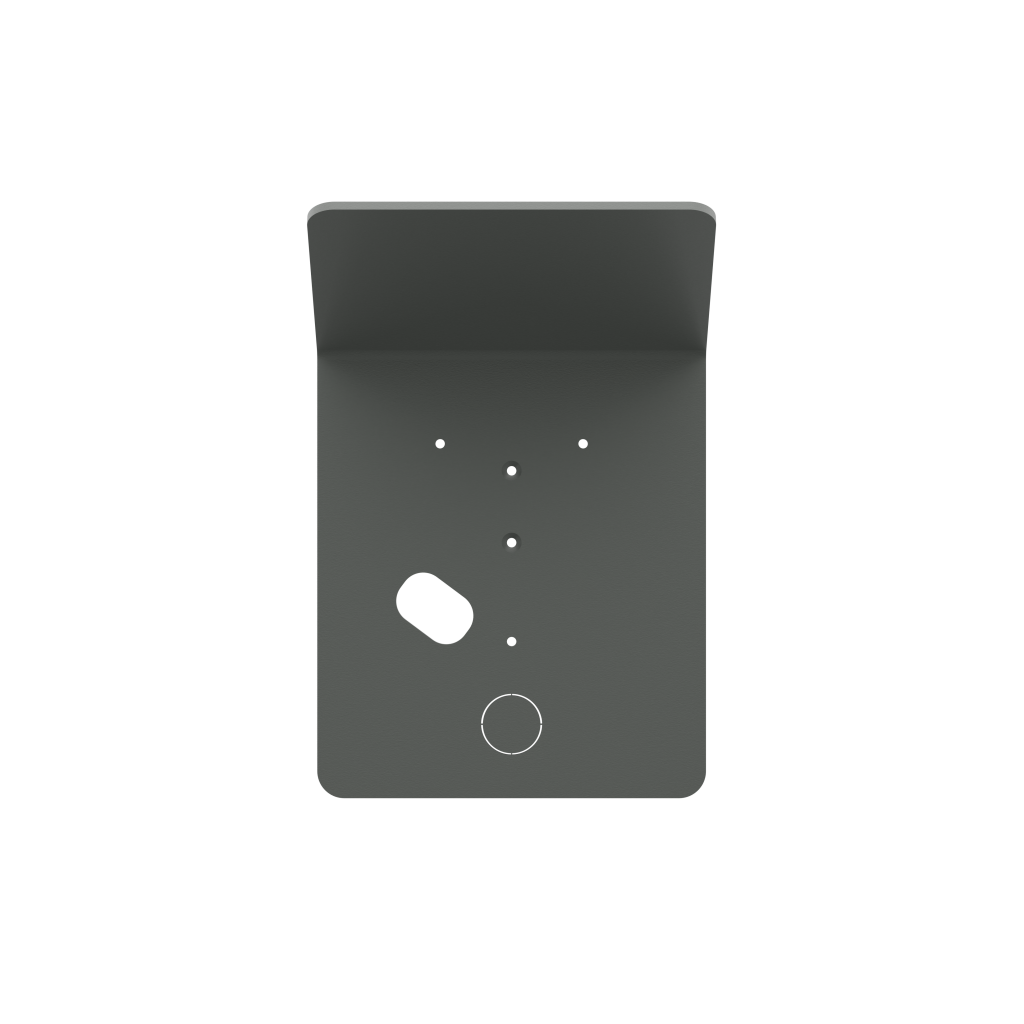

Eiffel Basic Rain Cover

Accessory Overview

Introducing the all-aluminum Rain Cover for the Pulsar Chargers Family. Engineered for durability and weather resistance, it protects your equipment from rain, dust, and debris. Its versatile design allows for easy mounting on both Pulsar setups and the Eiffel Basic, while the sleek finish and accessible charging ports add a touch of modern style.

Berlin Holster T2

Cable Dock Type 2

Accessory Overview

The Cable Dock is the perfect solution to store the cable and ev gun of your charger:

  • Holding the EV Gun and protecting it against the elements.
  • Helping to tidy up the charger’s cable.

Compatible with every Type 2 charger.

Need more Help?

Contact Us
Updated on 18/06/2024
