How to make a scheduled charging session with your Pulsar/Pulsar Plus

Schedule your electric vehicle recharges at your convenience with your Pulsar or Pulsar Plus.

Introduction

Sometimes it is very important to ensure that your charging station charges only at a certain time during the day or night. The possible reasons include:

  • You have different electricity tariffs depending on the time of day
  • You want to charge only during periods of low consumption of other devices in your household/facility

All our chargers allow this functionality as a part of the full management of the charging experience we want to provide to our end users.

Set up a schedule in your charger

Below you will find the instructions showing how to implement this useful functionality in your charger. Please ensure that the EV gun is not plugged into the car when making the scheduled charge.

1.- Open the Wallbox app.

2.- If you are not automatically logged in please fill in your credentials:

3.- Once logged in select your charger:

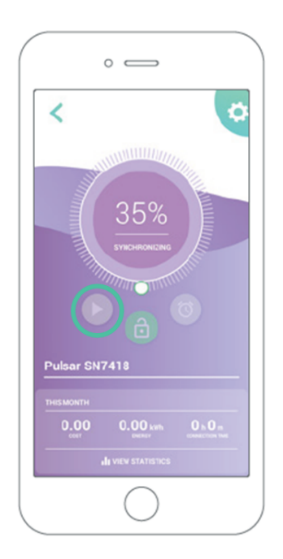

4.- Your app will then link to your charger. The HALO of your charger will turn purple during the synchronisation process (only Pulsar):

5.- In the app, press the clock button:

6.- The schedule menu will then appear. Select the start and end time. Then press save. Once this is done your charging session will be scheduled.

7- If you connect your car and a schedule is active your Pulsar will show a turquoise blinking colour:

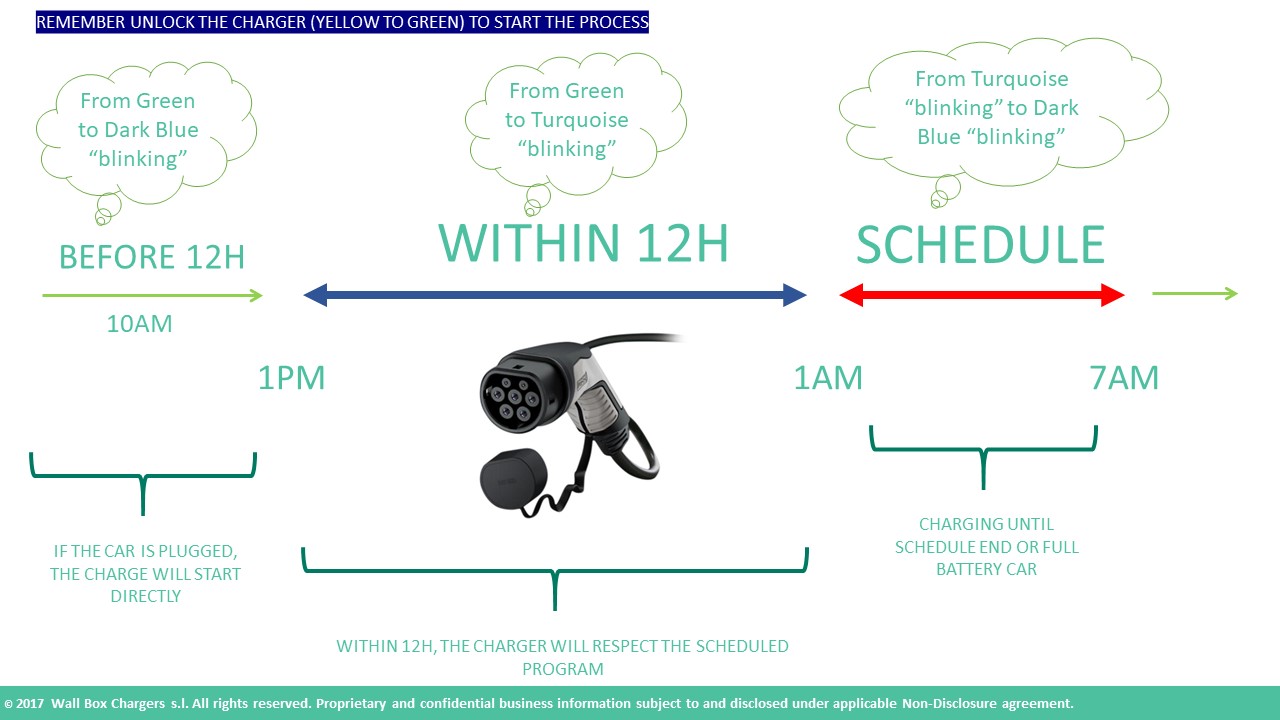

When does a scheduled charge apply?


If there is a programmed charge, the charger will only go into “waiting for scheduled charge” mode if there are less than 12 hours between now and the start time of the programmed charge. It will wait and respect the start time of the programmed charge to start charging automatically.

VERY IMPORTANT: Please ensure that you unlock the charger before or after connecting the car. If the charger is locked while programming the scheduled charge, the new schedule will not be applied.

Nevertheless, in case you want to start charging although a charging session is scheduled, all you have to do is press the “play” button, and the charging session will immediately start:
